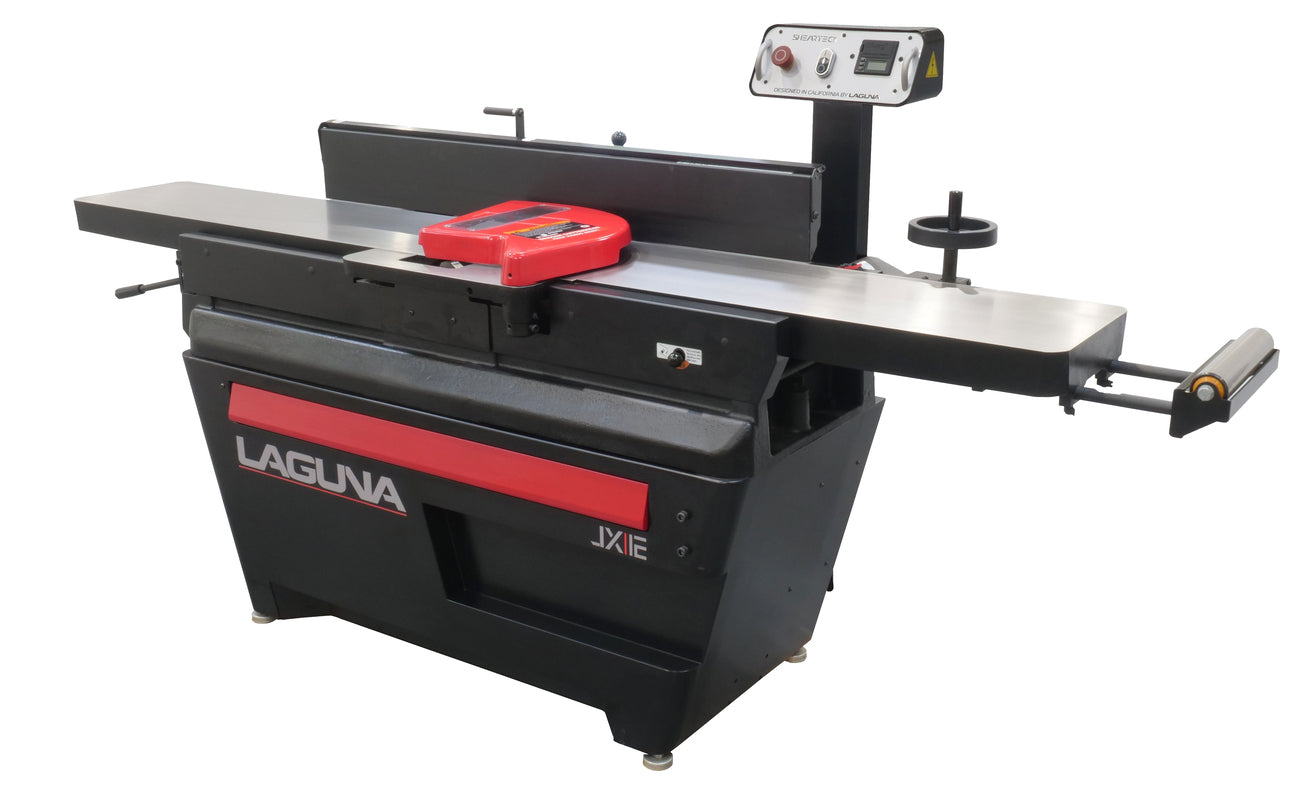

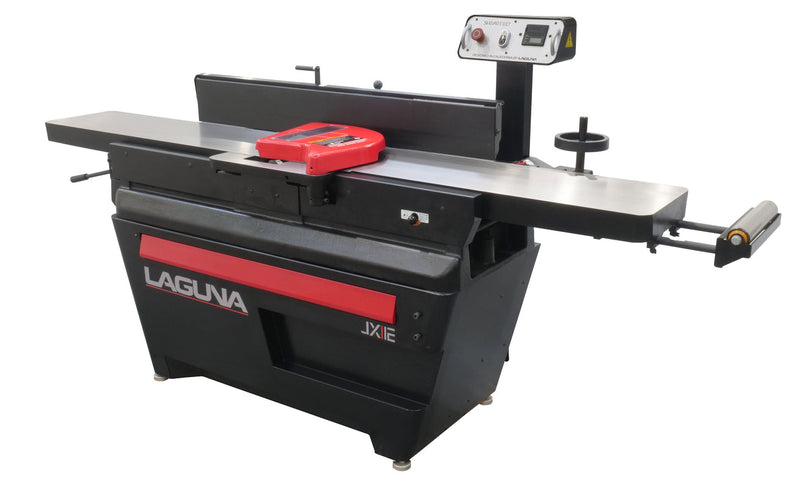

LAGUNA MJ12X88P-0130 JX|12 SHEARTEC: II JOINTER 5 HP, 220V

The Laguna JX|12 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

Features:
Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials
ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer.

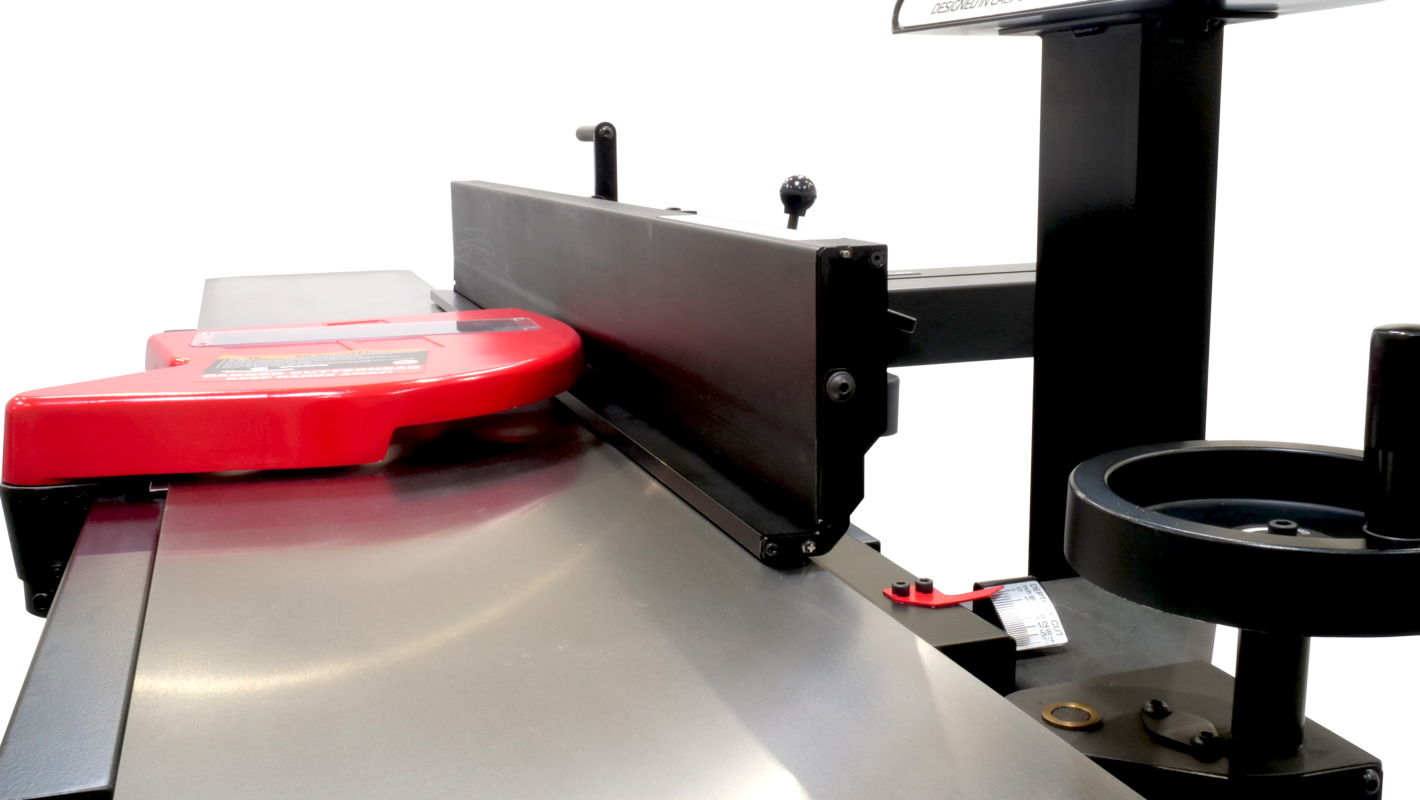

Deluxe Fence – 5-3/4″ fence with flip-down small fence for intricate work
Worklight Ready – Built-in outlet and bracket for optional LED work light
Power-feeder Ready – Included bracket to mount optional power-feeder

Motor: 220V 5HP 1 Phase 60hz/23 Amp

CSA: Yes

Bed Size: 12″ x 88″

Infeed Table Pull-Out Extension: 10″

Rabbetting Capacity: 3/4″

Fence Size: 5-3/4″ x 47″ Aluminum Fence

Fence Tilt: ±45/90°

Max. Depth Of Cut: 1/8″

Table Height From Floor: 32″

Safety Bar Shut-Off: Yes

Bracket To Mount Light: Yes

110V Outlet For Light: Yes

Bracket To Mount Feeder: Yes

Dust Port Diameter: 6″

No Cord Or Plug Supplied

Cutterhead Insert #: 66 x 4-Sided Carbide, 6 Row

Cutterhead RPM: 5500

Cutterhead Diameter: 3-7/8″

Bed Adjustment: Parallelogram

Dimensions Set Up (Approx): 92″ x 40″

Base Footprint Dimensions: 43″ x 20-1/2″

Dimensions Shipping: 91″ x 32″ x 45″

Net/Ship Weight: 876/1043 Lbs. (1 Box)
