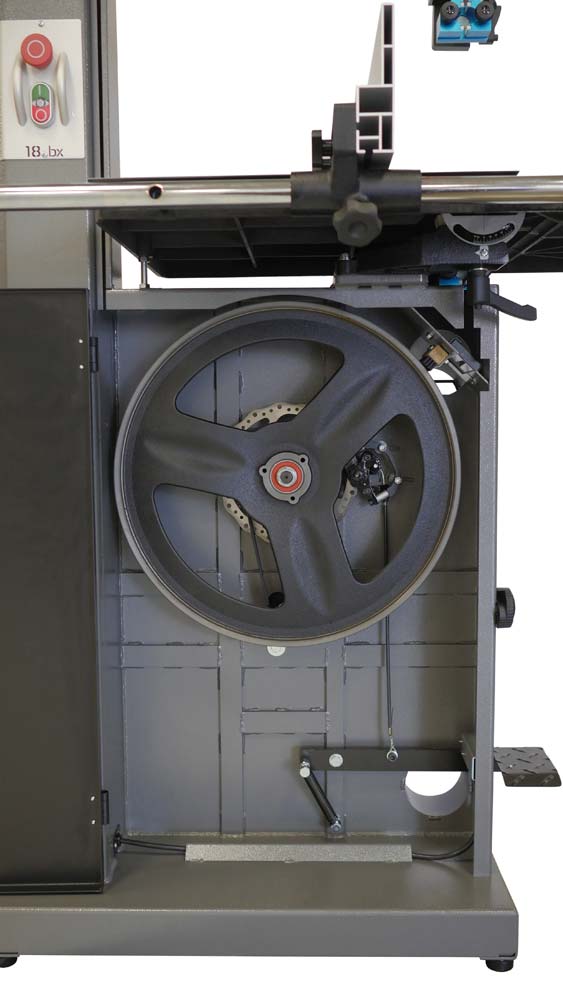

LAGUNA MBAND18BX2203 18|BX BANDSAW 3 HP 16" RESAW CAP, 220V

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material.

Features:
Motor: 3HP, 220V, 1 Ph. 12 Amp.
Recommended Breaker: 20 Amp.
Magnetic Starter
Min-Max Blade Width: 1/8″ – 1-1/4″
Resaw Capacity: 16″
Throat: 18″
Blade Length: 145″

Disc-Brake With Micro Switch

220V Outlet On Back For Light

Window For Tension

Window For Tracking

Magnetic Blade Tension Guide

Worm Gear & Pinion Upper Guide

10 Point Laguna Ceramic Guides

Flat Poly-Groove Drive Belt

Premium Anodized Insert With Micro Adjustment

Dynamically Balanced Cast Iron Wheels

Urethane Single Piece Snap-On Tire

Cast Table Size: 20″ x 26″

Table Tilt: -6°, +45°

Cast Table Size: 20″ x 26″

Table Tilt: -6°, +45°

Quick-Release Tension

Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″

Table Height: 38″

Dust Ports: 4″ x 2

Overall Height: 77-¾″

Dimensions (Base): 27″ x 20″

Dimensions Overall: 36″ x 30″

Dimensions Box: 36″ x 84″ x 30″

Weight (Net/Ship): 410/460 lbs
