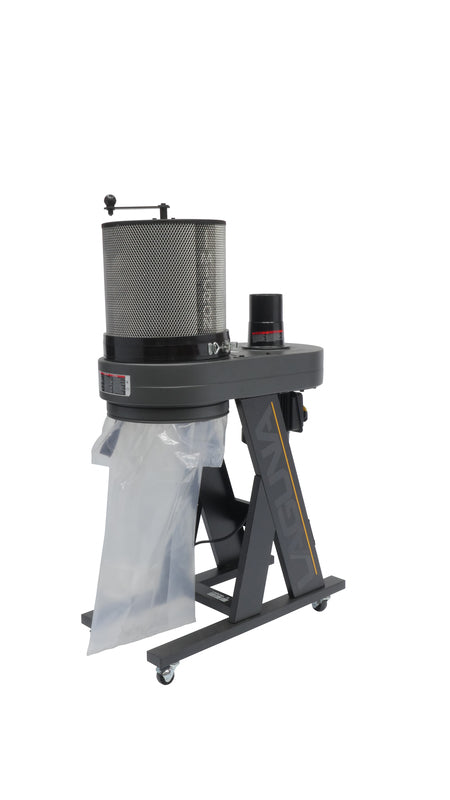

LAGUNA MDCBF1110C1M B|FLUX 1 HP 1 MICRON CANISTER DUST COLLECTOR, 110V

The best looking single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards.

Features:
Motor: 1HP
Phase: 1
Voltage: 110v
Amps: 8.4 Amps
Recommended Breaker: 15 Amps
Hertz: 60

The B|Flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.

Plug: Yes

RPM: 3450

Switch Type: Motor Mounted Direct Switch

Hand Held Remote: None

Shop Setting CFM: 550

Inlet CFM: 650

Max Static Pressure (Inches of Water): 4.86″

Impeller/Fan Size: 9″

Impeller Material: Steel

Impeller Type: Radial Fin

Balanced To: ISO 1940

Inlet Diameters: 4″ x 1 Port

Drum Collection Bag (Dia. x L): Plastic Bag (350 x 980mm)

Canister Filter Type: 1 Micron

Filtration Efficiency: 0.2 – 2 Micron at 99.97%

MERV Rating: 12

Canister Diameter: 360mm (14.2″)

Canister Length: 300mm (11.8″)

Filter Surface Area: 1.6m² / 17.2ft²

Canister Cleaning: Manual Handle Crank 360°

Wheels: 2″ Ball Caster

CSA Approved: Yes

Decibel Reading: 76 dB (At 9.8ft)

Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″ | 736 x 376 x 1280mm

Shipping Weight: 77lbs

Shipping Dimensions (L x W x H): 32″ x 20″ x 25″
