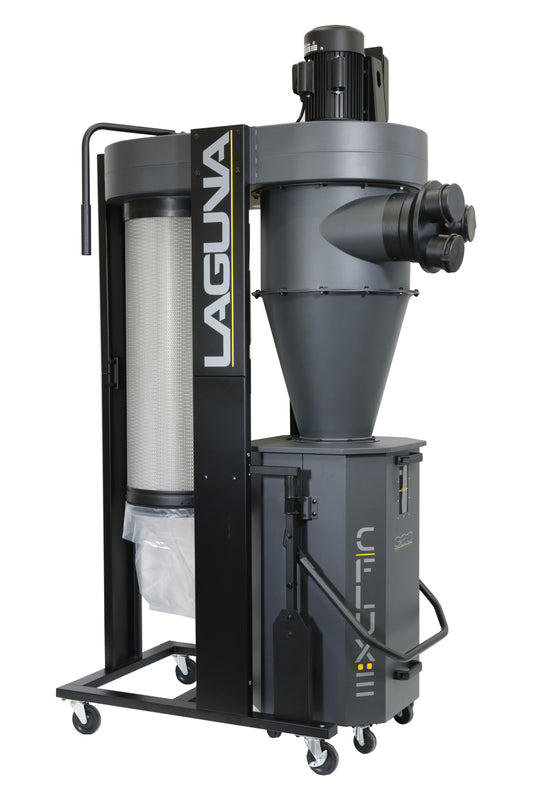

LAGUNA MDCCF32201 C|FLUX:3 3 HP CYCLONE DUST COLLECTOR, 220V

In 2022, Laguna has updated its line-up of C|Flux & P|Flux cyclones, and launched the all-new X|Flux 5 dust collector!

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity.  The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

Features:
3 HP Motor
1624CFM Of Air Flow
46 Gallon Octagon Drum

Motor Specs: 3HP

Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM

Running AMP: (8″ Inlet) 22A at 220V

Air Volume: 1624CFM (Cubic Feet Per Minute)

Max Static Pressure: 11.2″

Fan Size: 15.5″

Inlet: 8″ (8″ x 4″ X 3 Ports)

Remote Control: High Frequency

Collection Capacity: 46 Gallon Octagon Drum

Decibel Reading: 88 dB (@9.8ft)

Assembled Dimensions (L x W x H): 48″ x 28″ x 88″

Packing Size (L x W x H): 50″ x 31.5″ x 50.6″ (127 x 80 x 128.5 cm)

Machine Weight: 373 lbs. (169 kg)

Shipping Weight: 441 lbs. (200 kg)

Filter Specs

Filtering Area: 102 sq/ft (9.5 sq/m)

Cartridge Filter: 1 Micron, 15.74″ x 35.43″ (40 x 90 cm) x 1pc
