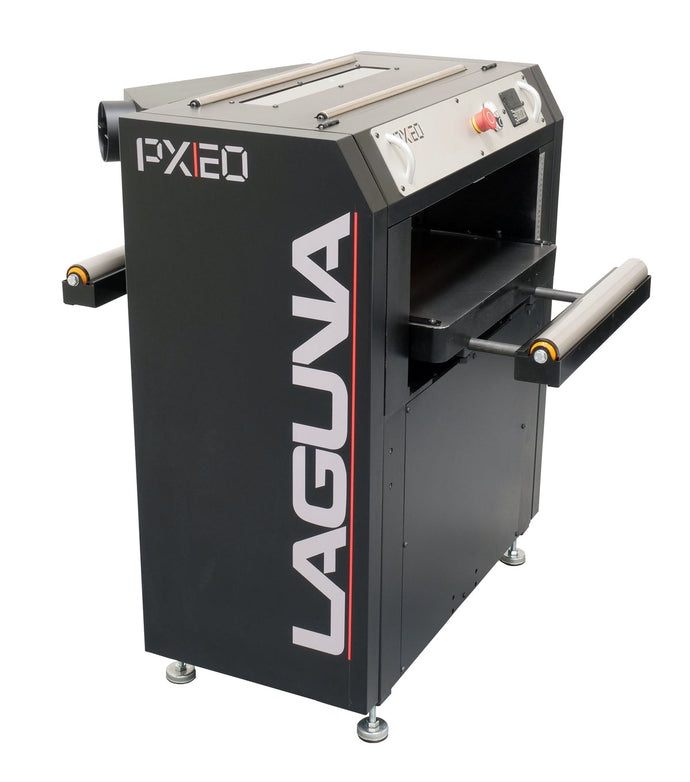

LAGUNA MPLANPX20-0130 PX|20 SHEARTEC: II PLANER 5 HP, 220V

The all-new PX|20 planer signals an innovative new design for Laguna planers. The Laguna PX|20 is loaded with new ergonomic features to make woodworking safer and more enjoyable.

Features:
Infeed and Outfeed Rollers – The PX|20 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint

Digital Readout – The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier

Ergonomic Control Panel – Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|20 sports a sleek, modern design

Improved Dust Collection – The 4″ diameter dust chute offers the option to point to right or left to optimize dust collection system layout

4-Post Bed Support – Provides precise and consistent performance with every cut
ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods

Serrated Infeed Roller – The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe

Motor: 220v 5HP 1 Phase 60hz/23 Amp.

CSA: Yes
Bed Size: 20″ x 21-½″
Pull-Out Extension: 4″
Max. Depth Of Cut: ¼″Ma
x. Stock Thickness: 8″
Min. Stock Thickness: ¼″
Min. Stock Length: 8″
Max. Stock Width: 20″
Feed Speed: 16 & 28 FPM
Dust Port Diameter: 4″ Left & Right
Cutterhead RPM: 5000
Cutterhead Diameter: 3″
Cutterhead Insert #: 138 x 4-Sided Carbide, 6 Row
No Cord Or Plug Supplied
Thickness Readout: Wixey DRO
Noise (1m away): 83dB
Dimensions Set Up Approx. 36″ x 36″
Dimensions Shipping: 42″ x 30″ x 46″
Net/Ship Weight: 535/638 Lbs.
