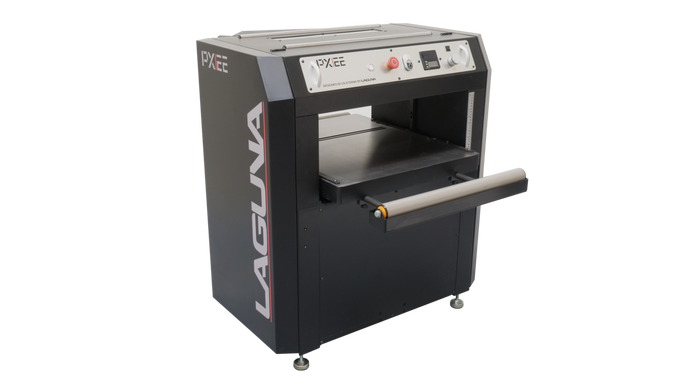

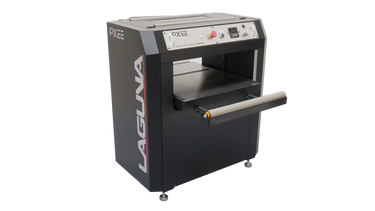

LAGUNA MPLANPX2210-0130 PX|22 SHEARTEC: II PLANER 10 HP 3 PH, 220V

The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.

Features:
Motor – The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
Segmented Infeed Roller – Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness

Electronic Variable Speed – Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models

Infeed and Outfeed Rollers – The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint

Digital Readout – The DRO makes setting precise thickness easier

Ergonomic Control Panel – Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility

Improved Dust Collection – The 5″ diameter dust chute offers the option to point to right or left to optimize dust collection system layout

4-Post Bed Support – Provides precise and consistent performance with every cut

ShearTec II Cutterhead – The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods.

Motor: 220v 10HP 3 Phase 60hz/28 Amp.

CSA: Yes
Bed Size: 22″ x 28″
Pull-Out Extension: 6″
Max. Depth Of Cut: ¼″
Max. Stock Thickness: 8″
Min. Stock Thickness: ¼″
Min. Stock Length: 9″
Max. Stock Width: 22″
Feed Speed: 10 – 30 FPM Variable Speed
Dust Port Diameter: 5″ Left Or Right
Cutterhead RPM: 5000
Cutterhead Diameter: 3-½″
Cutterhead Insert #: 150 x 4-Sided Carbide, 6 Row
No Cord Or Plug Supplied
Thickness Readout: Wixey DRO
Noise (1m away): 83dB
Dimensions Set Up Approx. 40″ x 46″
Dimensions Shipping: 44″ x 38″ x 48-½″
Net/Ship Weight: 867/955 Lbs.
