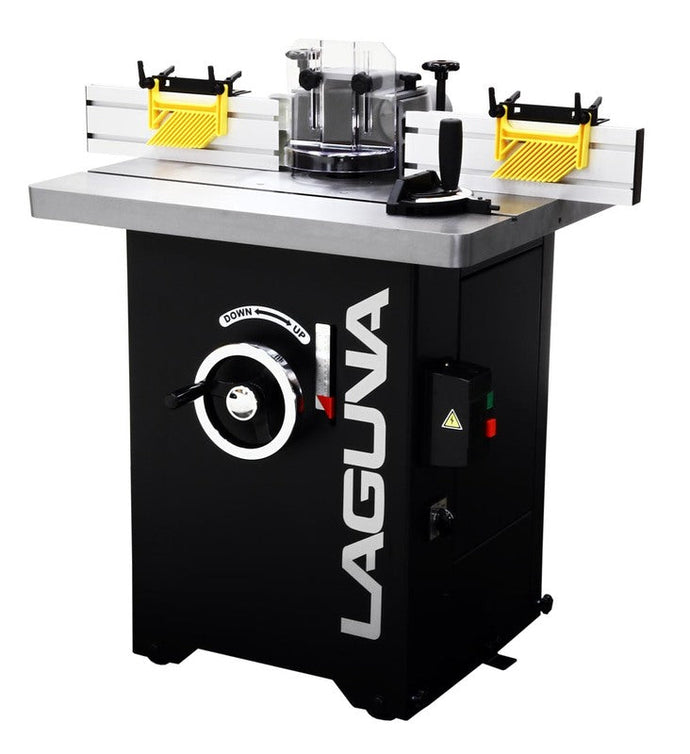

LAGUNA MSHAP4SPD-3-0130 COMPACT SHAPER 3 HP, 220V

The Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro. The fit and finish on this world class machine is incredible.

Features:
Motor: 3HP, 1 Phase, 220 Volt 60 Hz
Table Size:32″ x 26-1/2″
Spindle Travel: 4″
Spindle Sizes: 3/4″ & 1-1/4″ (Incl.)
Router Collets: 1/4″ & 1/2″ (Incl.)

You will be hard pressed to find a better value than the Compact Shaper: 4 speeds, generous sized table, wheels built right in. Easy spindle lock makes tool changes a snap. One of the most impressive features is the speed change. A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way. Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won’t find in this price range anywhere else.

Capacity Under Nut: 4″ (1-¼″ Spindle)

Spindle Speeds: 4000, 6000, 8000, 10000 RPM

Forward/Reverse: Yes

Table Opening Diameter: 6-¼″

Table Insert Opening Diameter: 2-½″, 4-5/16″

Rotation: Forward/Reverse

Table T-Slot: Yes

Fence Size: 4-13/16″ x 16″

Drive Belt: Flat Poly-Groove

Table Height From Floor: 34″

Dust Port Diameter: 4″

Micro Adjustment On Fence: Yes

Wheel System: Built In

Weight (Net/Ship): 450/500 lbs

Shipping Dimensions (L x W x H): 40″ x 30″ x 42″
