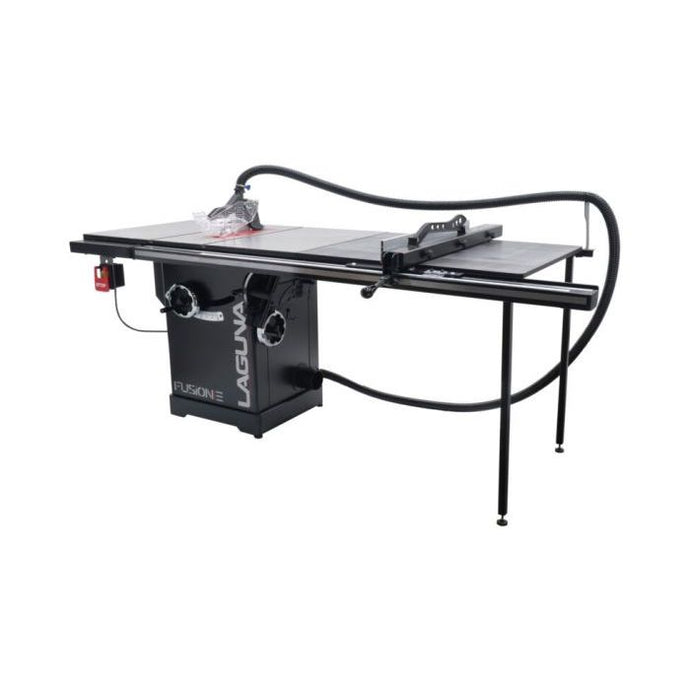

LAGUNA MTSF3362203-0130-52 FUSION 3 3 HP 10" TABLE SAW, 52", 220V

The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

Features:
52″ Rip Capacity
3HP TEFC Motor
220V, Single-Phase, 60Hz Power Requirement
Fusion Dust Collection System
Industrial Cabinet, Fence & Trunnions
Included Tools, Tables & Integrated Tool Storage

52″ Rip Capacity
Industrial 14 Gauge Cabinet
Accessory Tables (Outfeed & Rip)
Industrial Fence Rail
Industrial Fusion Fence
Premium Electrical & Hardware Components
Premium Miter Gauge
Cast Iron Fusion Trunnions
Cabinet Mounted Arbor
Cast Iron Table & Wings
European Hi-Lo Fence
Premium Zero Clearance Throat Plate
Fusion Hi-Lo Dust Collection
Maginetic Contractor Switch
Quick-Release Blade Guard & Spreader
Riving Knife Included
Push Stick Included
Miter Gauge Included
Blade Changing Tool Included
10 x 40T Carbide-Tipped Blade Included
Premium Arbor & Motor Bearing
Mobility Built Into Cabinet

Features:
Digital Readout
Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment
European Hi/Low Fence
The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence
Outfeed Table
Coming standard with the Fusion F3, the outfeed table features dual miter slots and 2 supporting legs
Cabinet Mounted Trunnion
Adjusting the table to line up the miter gauge has never been easier
Industrial Fence & Rails
The fence glides effortlessly on the industrial strength steel fence rails

Specs:

Dust Port Size: 4″

Blade Guard Dust Port Size: 1-½″

Table Saw Type: Cabinet

Maximum Blade Diameter: 10″

Arbor Size: ⅝″

Arbor Speed: 4500 RPM

Maximum Width Of Dado: ¾″

Blade Tilt Direction: Left

Max Blade Tilt: 45°

Maximum Depth Of Cut At 90°: 3-⅛″

Maximum Depth Of Cut At 45°: 2-⅛″

Max Rip Right Of Blade With Included Fence & Rails: 52″ *

* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
